Garden Array GA4 SAT & GA10 SUB

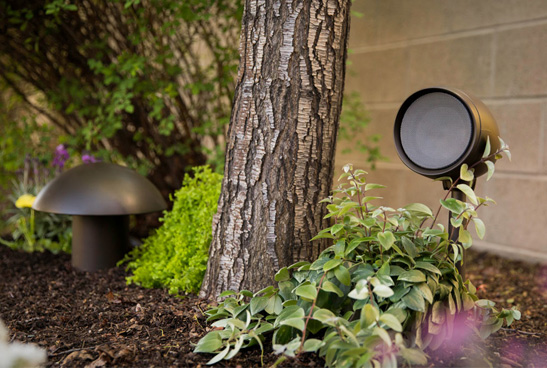

The Triad Garden Array is a family of premium, all-weather landscape speakers that are the perfect combination of elegance, sound, and durability. This family includes the unique GA4 Satellite and powerful GA10 Subwoofer speakers, designed to be placed throughout flowerbeds or around the yard blanketing outdoor spaces with rich, beautiful audio. Triad Garden Array speakers are completely scalable for every outdoor listening experience, from courtyards and patios to entire residential estates.

The Triad GA4 Satellite speaker is built around a unique, Ultra-Broad Dispersion (UBD) driver that provides superior sound coverage using fewer speakers. GA4 Sats deliver a 150-degree listening area that is over 50% wider than traditional landscape speakers, allowing for broader speaker placement without compromising sound quality. Everyone gets consistent volume levels and tonal balance for filling outdoor areas without the beaming or hot spotting of conventional designs.
The GA10 Subwoofer is designed for both above- and below-ground installations so the bass can be located exactly where you want it—on the patio or deck, or buried near a pool, gazebo, or pergola. Kits are available for either type of installation.
With the best-looking aesthetics in this outdoor category, from courtyards and patios to entire residential estates, Triad is the ultimate choice for your outdoor sound.

Categories: Outdoor, Everywhere Audio
Tag: Outdoor

Features

GA4 Sat

  • Scalable system
  • Weather resistant enclosure and design
  • (1) 4-1/2” UBD Broadband Driver
  • UBD Technology (Ultra Broad Dispersion™) Provides consistent wide dispersion with total sonic coverage without beaming or hot spotting
  • 8 ohms or 70/100 volt systems
  • Transformer Taps: 3.75 W, 7.5W, 15W, 30W, 8 Ohm
  • Adjustable mounting poles up to 18”
  • Ground stakes included, wall mounts available

GA10 Sub

  • Weather resistant enclosure and design
  • Handles 300W of power at 4ohm. Can pair with a Triad RackAmp300
  • Down-firing 10” woofer, side firing when mounted to the UnderGroundKit
  • Can be mounted above or below ground with the optional UnderGroundKit
  • Compact size
  • Designer friendly

Performance Specifications

GA4 SAT: Recommended Amp Power
15 – 60 Watts direct, 3.75-35W per Sat, @ 70/100V

GA4 SAT: Impedance
8 ohms

GA4 SAT: Sensitivity (db 1watt/1meter)
87

GA4 SAT: Anechoic Frequency Response
100 Hz – 20 kHz +/-3dB

GA4 SAT: Woofer Type
Coated Pulp, UBD Broadband Driver

GA4 SAT: Woofer Size
(1) 4.5″ /11.4cm

GA10 SUB: Woofer Type
Long-excursion coated paper

GA10 SUB: Woofer Size
(1) 10″/25.4cm

F3 -3db
F3 @ 25 Hz

Max SPL
102

Sub Amp Type
RackAmp300

Sub Amp Power
300 watts

Weather resistant enclosure and design.
Fully engineered, Premium outdoor enclosure.

Triad’s Basic Brown outdoor finish is only available for this product.

Since all computer monitors and their colors vary, the digital color you see here will be different from the actual product finish.

Cabinet Specifications

GA4 SAT: Height
11 3/4″

GA4 SAT: Width
5 1/4″

GA4 SAT: Depth
7 7/8″

GA4 SAT: Product Weight
3.37lbs

GA4 SAT: Shipping Weight (pair)
8.29lbs pair

GA10 SUB: Height
10 1/4″

GA10 SUB: Width
13 3/4″

GA10 SUB: Depth
13 3/4″

GA10 SUB: Product Weight
23.6lbs

GA10 SUB: Shipping Weight (pair)
29lbs

GA4 SAT: Height
29.8cm

GA4 SAT: Width
13.4cm

GA4 SAT: Depth
20cm

GA4 SAT: Product Weight
11.4kg

GA4 SAT: Shipping Weight (pair)
3.76kg pair

GA10 SUB: Height
26cm

GA10 SUB: Width
35cm

GA10 SUB: Depth
35cm

GA10 SUB: Product Weight
10.72kg

GA10 SUB: Shipping Weight (pair)
13.15kg

GA4 SAT: Height
11.75″

GA4 SAT: Width
5.25″

GA4 SAT: Depth
7.875″

GA4 SAT: Product Weight
3.37lbs

GA4 SAT: Shipping Weight (pair)
8.29lbs pair

GA10 SUB: Height
10.25″

GA10 SUB: Width
13.75″

GA10 SUB: Depth
13.75″

GA10 SUB: Product Weight
23.6lbs

GA10 SUB: Shipping Weight (pair)
20lbs
