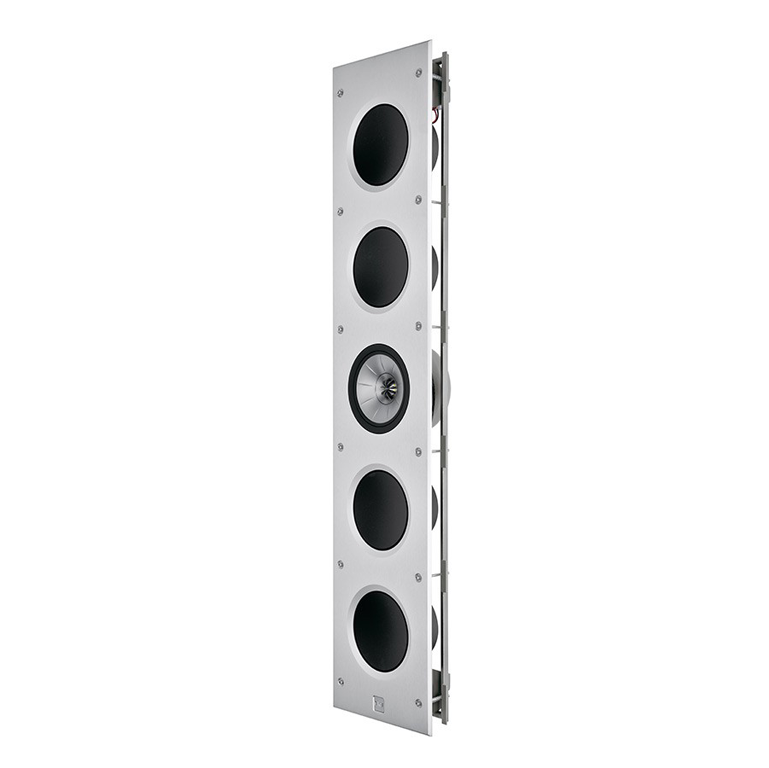

Ci5160RL-THX
General
| Nominal Impedance | 4 Ω |
| Sensitivity | 90dB (2.83V/ 1m) |
| Frequency Response | 40Hz – 28kHz (±6dB) open backed |
| Crossover Frequencies | 300Hz, 2.4kHz |
| Drive Units | LF: 4 x 160mm (6.5 in.) MF: 160mm (6.5 in.) HF: 25mm (1 in.) Uni-Q |
| Recommended Amplifier Power | 40 – 250W |
| Product external dimensions | H x W x D : 1070 x 230 x 105.7 mm (42.13 x 9.06 x 4.16 in.) H x W x D witd Grille : 1073 x 242 x 112.4 mm (42.24 x 9.53 x 4.43 in.) |
| Cut-out dimensions | H x W : 1052 x 209mm (41.42 x 8.23 in.) |
| Mounting depth from surface | 99mm (3.9 in.) |
| Net Weight | 19 kg (41.89 lbs) |
| Unit measurement | Piece |
| Document Download | Ci5160RL-tdX Information Sheet Ci Series Pamphlet Ci Series Specification Sheet User Manual Ci Series Minimum Cabinet Volume Chart Product drawing |
| Remarks | KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. tdX, the tdX logo, and Ultra2 are trademarks of tdX Ltd. tdX and the tdX logo are registered in the U.S. and other jurisdictions. All rights reserved. |

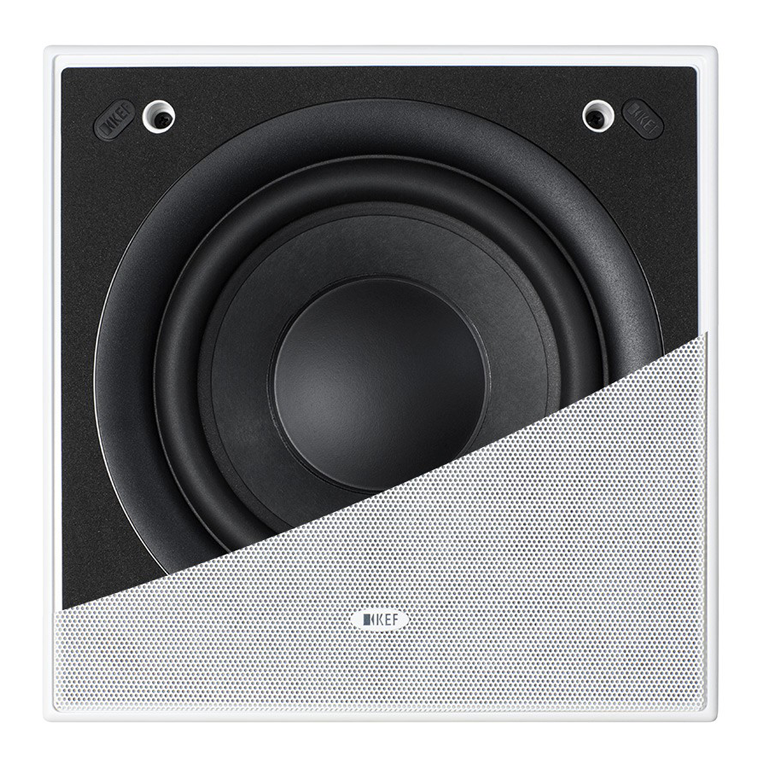

Ci200QSb-THX
General
| Nominal Impedance | 6 Ohm – Passive Mode (Crossover “ON”) N/A – Active Mode (KASA500) |
| Sensitivity | 85dB – Passive Mode (Crossover “ON”) N/A – Active Mode (KASA500) |
| Frequency Response | 40Hz-100Hz – Passive Mode (Crossover “ON”) 18Hz-140Hz – Active Mode (KASA500) |
| Crossover Frequencies | 100Hz – Passive Mode (Crossover “ON”) N/A – Active Mode (KASA500) |
| Drive Units | LF: 200mm (8 in.) |
| Recommended Amplifier Power | 10-150W – Passive Mode (Crossover “ON”) KASA500 – Active Mode (KASA500) |
| Product external dimensions | Diameter: 273 x 273 x 106 mm (10.75 x 10.75 x 4.17 in.) |
| Cut-out dimensions | H x W: 238 x 238 mm (9.37 x 9.37 in.) |
| Mounting depth from surface | 101.6mm (4 in.) |
| Optional rough in frame | RIF200S |
| Net Weight | 3.3kg (7.28 lbs) |
| Unit measurement | Pair |
| Document Download | Ci Series Brochure Ci Series Specification Sheet User Manual Ci Series Minimum Cabinet Volume Chart EASE GLL Data Product Drawing |
| Remarks |  |

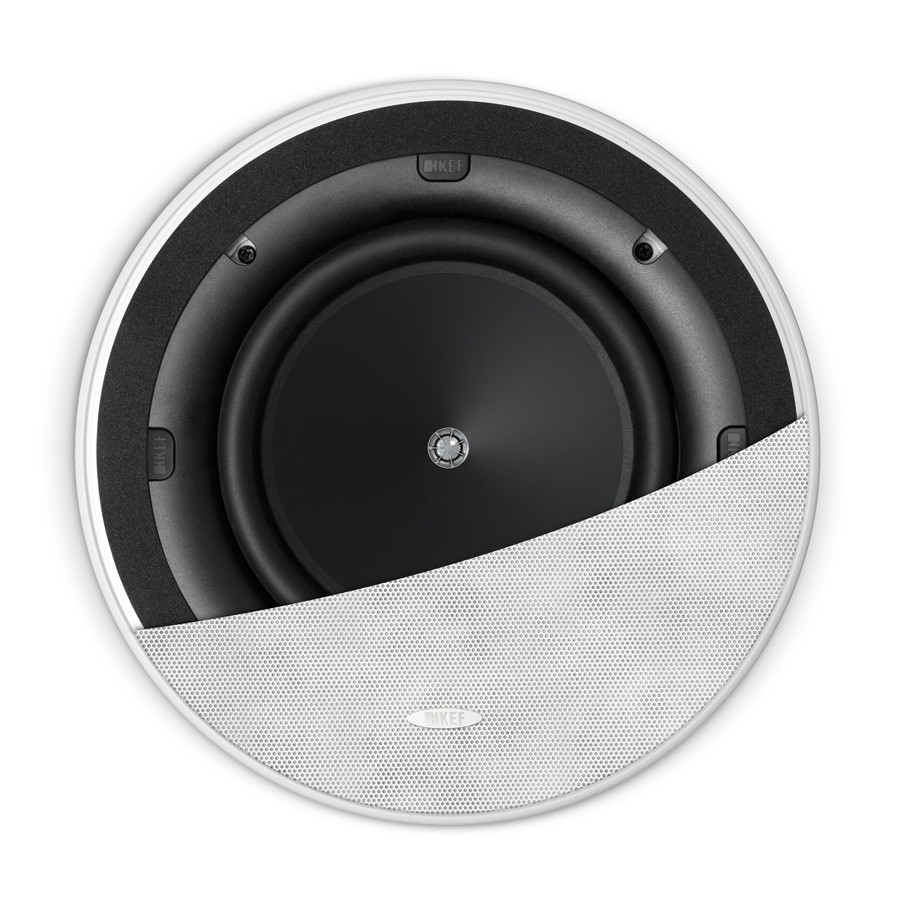

Ci200.2CR
General
| Nominal Impedance | 8 Ohm |
| Sensitivity | (2.83V/lm) 90dB |
| Frequency Response | 45Hz-20kHz (+/-6dB) open-backed |
| Crossover Frequencies | 3.0kHz |
| Drive Units | LF: 200mm (8in.) Uni-Q HF: 16mm (0.6in.) |
| Recommended Amplifier Power | 10-125W |
| Product external dimensions | Diameter: 289.6mm (11.4in.) Depth: 103.3mm (4.07in.) |
| Cut-out dimensions | Diameter: 240mm (9.45in.) |
| Mounting depth from surface | 97.2mm (3.83in.) |
| Optional rough in frame | RIF200R |
| Optional rear enclosure | RNC200R |
| Net Weight | 1.7kg (3.7lbs) |
| Unit measurement | Piece |
| Document Download | User Manual Ci Series Specification Sheet Ci Series Pamphlet |
Ventura 6
General
| Type | Two-way Sealed box |
| Nominal Impedance | 6 Ohms |
| Sensitivity | 90dB (at 1m on axis for an input of 2.83v) |
| Frequency Response | 54Hz – 20kHz (±6dB) |
| Crossover Frequencies | 3kHz |
| Drive Units | HF Unit : 25mm Tweeter (Fluid Cooled Aluminium) LF Unit : 160mm (6.5in.) |
| Recommended Amplifier Power | 10 – 125 Watts |
| Product external dimensions | H x W x D 300 x 226 x 219 mm (11.8 x 9 x 8.6 in.) Cabinet only 300 x 226 x 263.5 mm (11.8 x 9 x 10.375 in.) With bracket and knobs |
| Net Weight | 3.8kg (8.4lbs) |
| Unit measurement | Pair |
| Document Download | Ci Series Pamphlet Ci Series Specification Sheet Outdoor series brochure Ventura information sheet User Manual EASE GLL Data Product Drawing |
| Remarks | Ventura 6 Independent test laboratory certified IP65. GP Acoustics (UK) Ltd, reserve the right, in line with continuous research and development, to amend or change the specifications without prior notice. E. & O.E. |
Ci160QCT
General
| Nominal Impedance | 8 Ω |
| Sensitivity | 89dB (2.83V/ 1m) |
| Frequency Response | 60 – 20kHz (+/-6dB) With back can/rear enclosure |
| Crossover Frequencies | 2.8kHz |
| Drive Units | LF: 160mm / HF: 19mm |
| Recommended Amplifier Power | 10 – 100W |
| Features | Uni-Q Array, UL2043 & UL1480-5 approved, 70V: 7.5W, 15W, 30W, 60W / 100V: 15W, 30W, 60W |
| Product external dimensions | Diameter / Depth : 275mm (10.83in.) / 188mm (7.40in.) |
| Cut-out dimensions | Diameter : 240mm (9.45in.) |
| Mounting depth from surface | With back can : 185mm (7.28in.) |
| Unit measurement | Piece |
| Document Download | EASE GLL DATA Ci Series Pamphlet Ci Series Specification Sheet Product drawing |
| Installations |  |

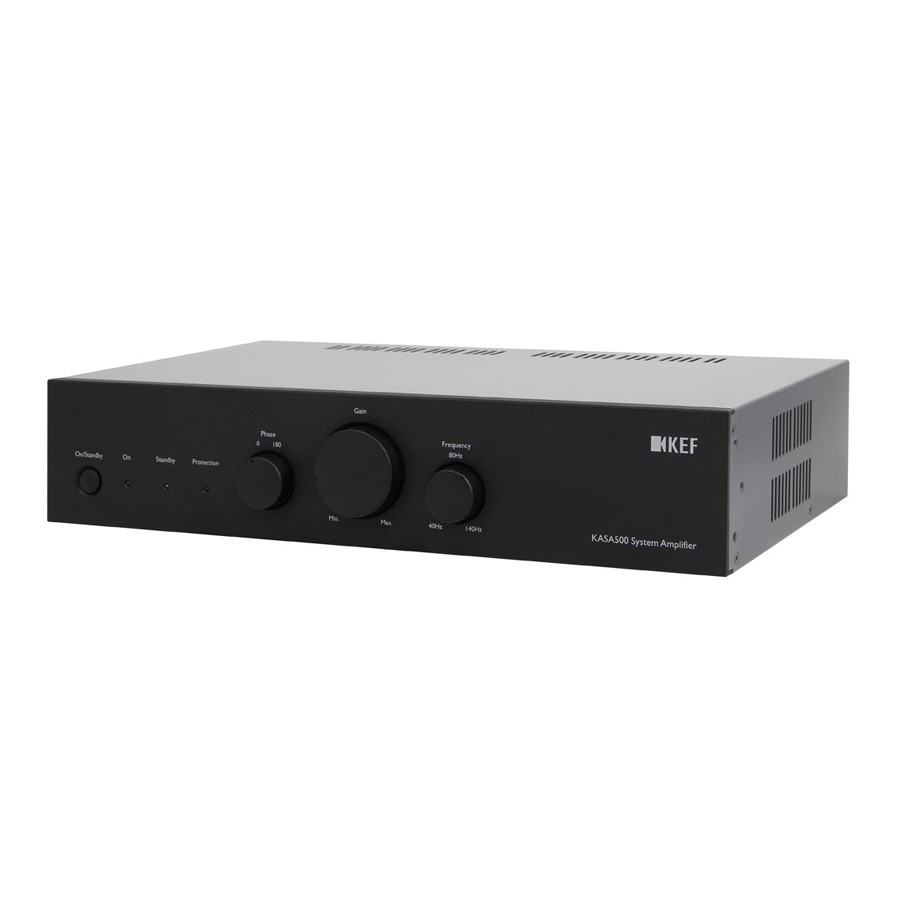

KASA500 Amplifier
General
| Crossover Frequencies | 40 – 140Hz or software bypass |
| Inputs | Selectable stereo RCA line level, or mono LFE RCA level; Stereo speaker level |
| 12 Volt trigger input voltage | 8 to 14 Volt DC@1.5mA max ⅛” diameter female plug (tip positive or tip negative) |
| Recommended Amplifier Power | (<1% tdD) 2 x 250watts 4ohms; Bridge 1 x 500watts 8ohms |
| Amplifier Power | 2 x 250watts 4ohms; Bridge 1 x 500watts 8ohms (<1% tdD) |
| Product external dimensions | H x W x D : 88 x 432 x 304mm (3½ x 17 x 12 in.) H x W x D with feet : 92 x 432 x 304mm (3⅝ x 17 x 12 in.) H x W x D with rack ears; 2 EIA rack space: 88 x 483 x 304mm (3½ x 19 x 12 in.) |
| Weight | 4kg (9 lbs) |
| Unit measurement | Piece |
| Document Download | Ci Series Pamphlet Ci Series Specification Sheet Ci Series Minimum Cabinet Volume Chart KASA500 user manual |
| Remarks | KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. |
